DRAKE™
Two-Piece, Free-Spinning Locknut

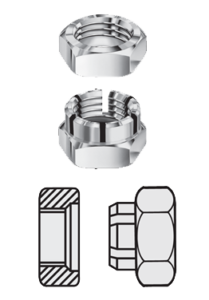

The DRAKE™ is designed to provide a secure and reliable fastening solution, particularly in applications subject to intense vibration. This locknut comprises two components:
- Bottom Nut: Features a flexible, slotted crown that engages with the male thread.
- Top Nut: When tightened onto the bottom nut, it creates a wedging action, enhancing the prevailing torque and ensuring a positive lock without damaging the mating threads.
This design allows the DRAKE™ locknut to be positioned anywhere along the threaded part, offering flexibility and ease of installation.
Application
DRAKE™ locknuts are ideal for high-vibration environments, including:
- Industrial Gas Compressors
- Diesel Engines
- Oil and Gas Rigs
- Power Plant Engines
In these settings, the DRAKE™ locknut’s superior holding power ensures the integrity of threaded assemblies under dynamic conditions.
Specification
Materials
Available in various materials, including steel grades 2, 5, 8, 2H/DH, Monel, brass, bronze, aluminum alloys, and stainless steel.
Threads
Offered in UNC, UNF, 8UN series, Class 2B, 3B, left-hand thread, and Metric.
Finishes
Options include plain, zinc, cadmium, and other platings and coatings.
Installation
To install the DRAKE™ locknut:
Positioning
Place the bottom nut onto the threaded part at the desired location.
Tightening Bottom Nut
Secure the bottom nut to achieve the required clamping load.
Applying Top Nut
Thread the top nut onto the bottom nut.
Final Tightening
Tighten the top nut to create the wedging action, locking the assembly in place.
This method ensures a robust connection capable of withstanding significant vibration without compromising the integrity of the threads.
